Every Original Log Cabin Homes Builder / Dealer Wholesale Materials Package includes the following materials:

LOGWALL SYSTEM:

All the Builders Series solid 8”X6” random length Bald Cypress precision milled double T&G logs for the exterior walls (first floor) 8ft Nominal Height, Log Homes Council Graded. (Story and One Half models include log siding for second floor exterior walls, Full Two story models include Solid Logs for exterior walls)
All the “Bison” lag screws needed to fasten each log course
All the double row of log course polyfoam insulation sealing tape – “Log Cabin” Log Seal Brand
All the oak joint dowels for butt ends & corner joints
All the “Log Cabin” log caulking for butt and end joints

WINDOWS:

All the Builders Series Insulated Natural Wood Double Hung Thermopane Windows(Low-E)
Trapazoid and Fixed Glass (By Owner)
Tempered glass when required by national codes where required according to our standard layout.

DOORS:

All the Builders Series 9 lite over 2-panel or 6 panel metal clad thermo insulated entry doors when illustrated
All the thermo insulated French Patio Swingers when illustrated

SECOND FLOOR SYSTEM: (for 50lb. loading)

All the 2x conventional second floor joists when applicable
All Second Floor Support Girders when required
All second Floor Support Posts when required
Solid Wood Blocking provided at midspan and over load bearing wall.
All the 7/16”OSB Girder and Header filler when required

ROOF SYSTEM:

All the stress engineered 2x conventional roof rafters and collar ties or trusses for the roof system depending on design, for 30lb roof loading
All the 7/16” Structurwood OSB roof decking.
All the engineered lumber valley beams when required
All the Hip Rafters when required
All the 2X Ridgeboard when required
All Barge Rafters
All ladder framing and 2X Subfacia

PORCH ROOF SYSTEM: (When Illustrated)

4X6 Porch Posts
6X8 Carry Beams
All framing and matching Log Siding for Porch Gable Ends.
All 2X Porch Rafters
All Ladder Framing and Subfacia
All Barge Rafters
Valley and Hip Rafters when applicable.
All the 7/16” Structurwood roof decking.

INTERIOR PARTITIONS:

All the 2”x4” interior studding for partition walls
All the 2”x6” plumbing walls
8ft Partition walls have precut studs
All top and bottom plates for studwalls
2X6 Headers with 7/16 OSB filler for bearing openings
2X10 Headers with 7/16 OSB filler for all load bearing opening

GABLE ENDS:

2X Studding and Framing materials
2X Window header with 7/16 OSB filler where required
Matching Log Cabin Siding
Solid Log Gables are Optional

DORMERS: (When Illustrated)

All 2X Studding and Framing Materials
Matching Log Cabin Siding
2X Window Headers with 7/16 OSB filler where required
2X Rafters
Valley Rafters
Dormer Headers
All the 7/16” Structurwood OSB roof decking.

EXTRAS

All the “Log Cabin” Building Wrap Protection to protect your Log Home materials during construction
Up to 5 sets of Auto-CAD designed blueprints
Final Prints to Include: Floor plans, Elevations, Standard Foundation Plans, Roof Framing, 2nd Floor Framing, Building Section, and Standard Detail Sheet.
Log Cabin Homes “HOW-TO” construction guide

Worldwide Delivery!
In Compliance with the 2017 IBC – International Building Code

Many Options and upgrades Available! Log Cabin Homes welcomes any custom quote without obligation. Ask your Representative for details.
Heavy Roof and Floor loadings, High altitude, Seismic, Hurricane, Nordic, Tropical and other extreme weather building specifications are available as an upgrade.

Every Original Log Cabin Homes Builder / Dealer Wholesale Materials Package includes the following materials:

LOGWALL SYSTEM:

All the Builders Series solid 8”X6” random length Eastern White Pine precision milled double T&G logs for the exterior walls (first floor) 8ft Nominal Height, Log Homes Council Graded. (Story and One Half models include log siding for second floor exterior walls, Full Two story models include Solid Logs for exterior walls)
All the “Bison” lag screws needed to fasten each log course
All the double row of log course polyfoam insulation sealing tape – “Log Cabin” Log Seal Brand
All the oak joint dowels for butt ends & corner joints
All the “Log Cabin” log caulking for butt and end joints

WINDOWS:

All the Builders Series Insulated Natural Wood Double Hung Thermopane Windows(Low-E)
Trapazoid and Fixed Glass (By Owner)
Tempered glass when required by national codes where required according to our standard layout.

DOORS:

All the Builders Series 9 lite over 2-panel or 6 panel metal clad thermo insulated entry doors when illustrated
All the thermo insulated French Patio Swingers when illustrated

SECOND FLOOR SYSTEM: (for 50lb. loading)

All the 2x conventional second floor joists when applicable
All Second Floor Support Girders when required
All second Floor Support Posts when required
Solid Wood Blocking provided at midspan and over load bearing wall.
All the 7/16”OSB Girder and Header filler when required

ROOF SYSTEM:

All the stress engineered 2x conventional roof rafters and collar ties or trusses for the roof system depending on design, for 30lb roof loading
All the 7/16” Structurwood OSB roof decking.
All the engineered lumber valley beams when required
All the Hip Rafters when required
All the 2X Ridgeboard when required
All Barge Rafters
All ladder framing and 2X Subfacia

PORCH ROOF SYSTEM: (When Illustrated)

4X6 Porch Posts
6X8 Carry Beams
All framing and matching Log Siding for Porch Gable Ends.
All 2X Porch Rafters
All Ladder Framing and Subfacia
All Barge Rafters
Valley and Hip Rafters when applicable.
All the 7/16” Structurwood roof decking.

INTERIOR PARTITIONS:

All the 2”x4” interior studding for partition walls
All the 2”x6” plumbing walls
8ft Partition walls have precut studs
All top and bottom plates for studwalls
2X6 Headers with 7/16 OSB filler for bearing openings
2X10 Headers with 7/16 OSB filler for all load bearing opening

GABLE ENDS:

2X Studding and Framing materials
2X Window header with 7/16 OSB filler where required
Matching Log Cabin Siding
Solid Log Gables are Optional

DORMERS: (When Illustrated)

All 2X Studding and Framing Materials
Matching Log Cabin Siding
2X Window Headers with 7/16 OSB filler where required
2X Rafters
Valley Rafters
Dormer Headers
All the 7/16” Structurwood OSB roof decking.

EXTRAS

All the “Log Cabin” Building Wrap Protection to protect your Log Home materials during construction
Up to 5 sets of Auto-CAD designed blueprints
Final Prints to Include: Floor plans, Elevations, Standard Foundation Plans, Roof Framing, 2nd Floor Framing, Building Section, and Standard Detail Sheet.
Log Cabin Homes “HOW-TO” construction guide

Worldwide Delivery!
In Compliance with the 2015 IBC – International Building Code

Many Options and upgrades Available! Log Cabin Homes welcomes any custom quote without obligation. Ask your Representative for details.
Heavy Roof and Floor loadings, High altitude, Seismic, Hurricane, Nordic, Tropical and other extreme weather building specifications are available as an upgrade.

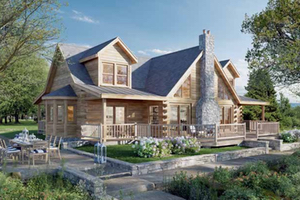

Shenandoah
